Engineering that excels, combining unmatched energy efficiency with an extended range of operation.

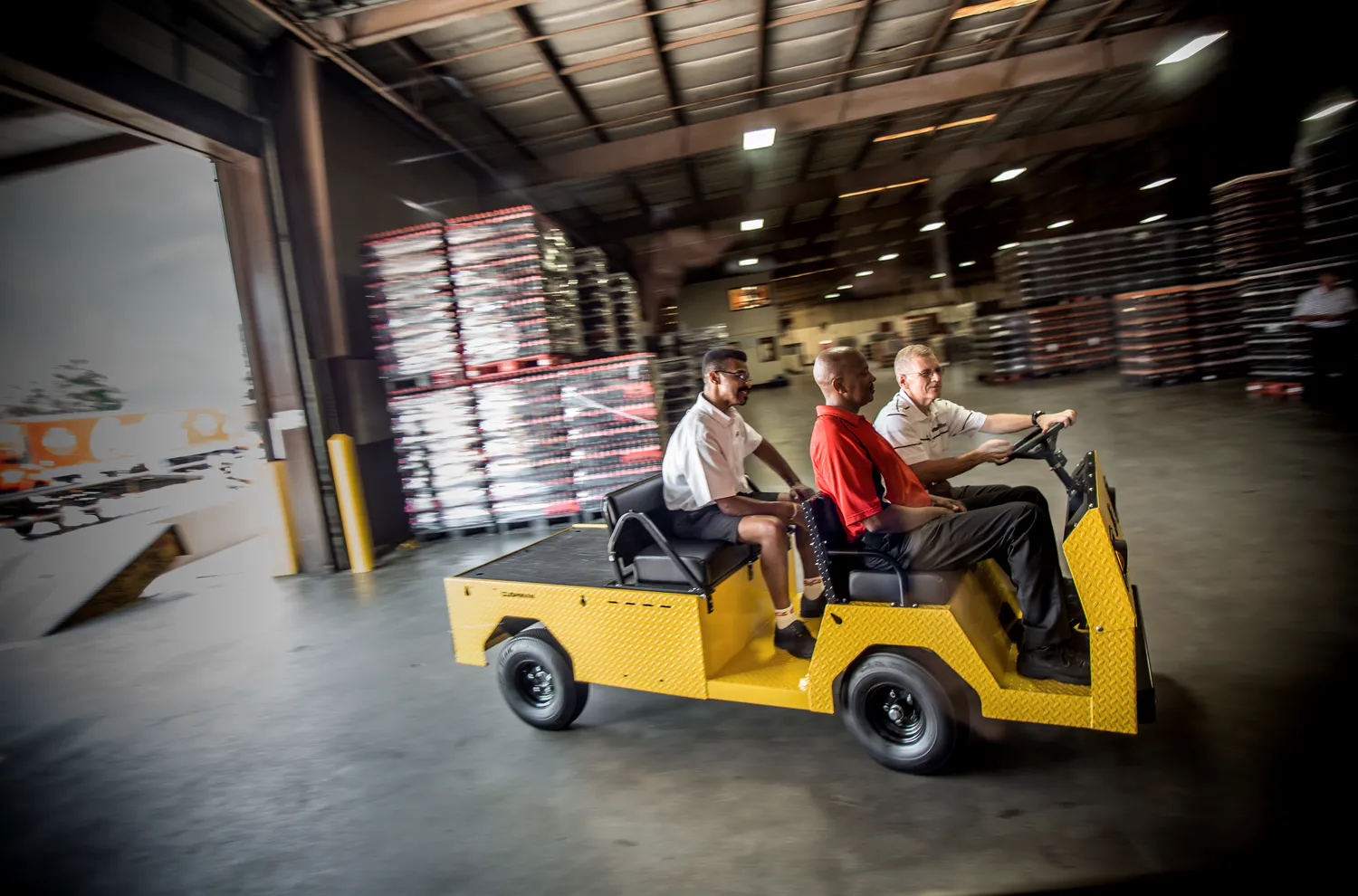

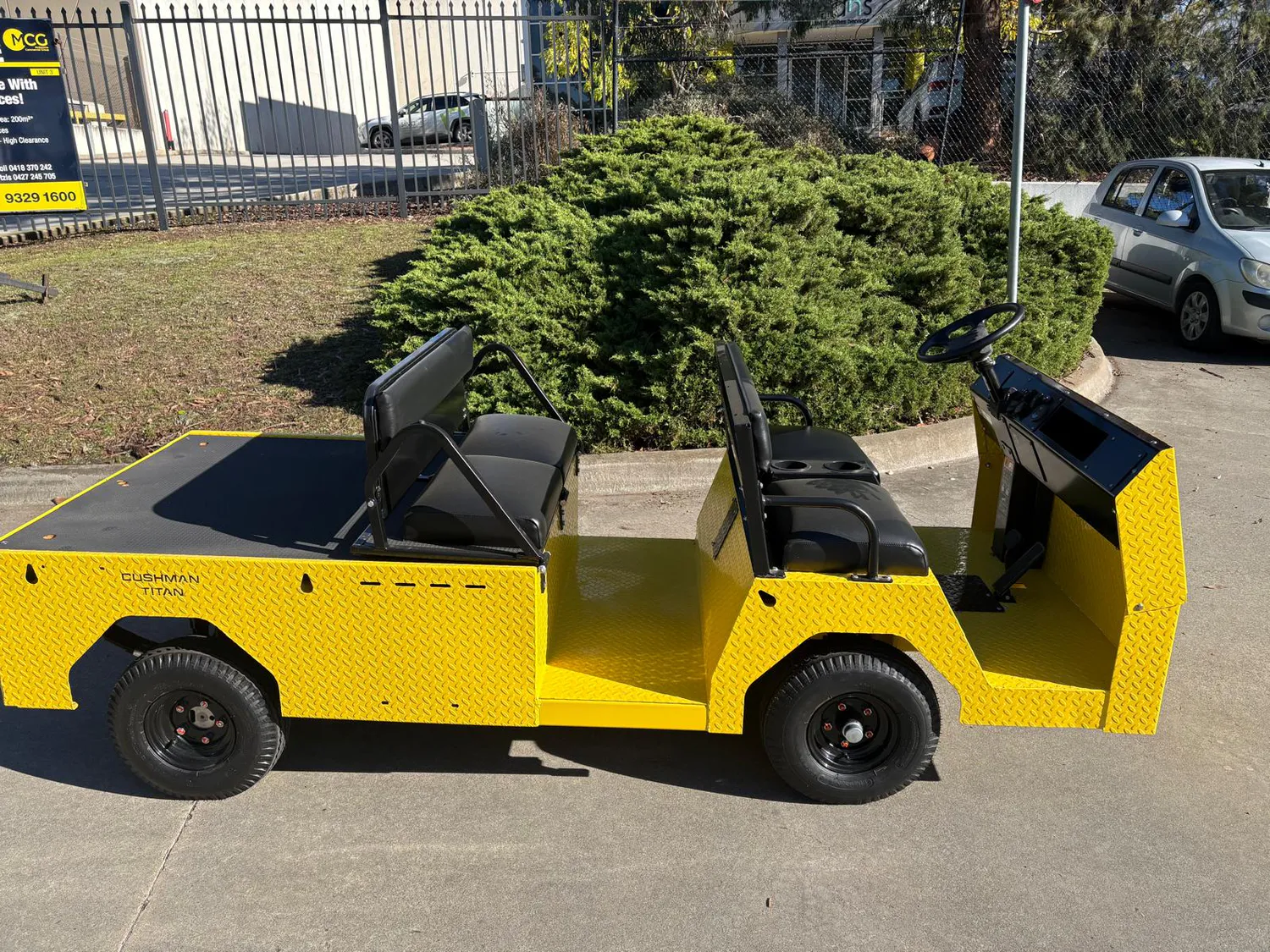

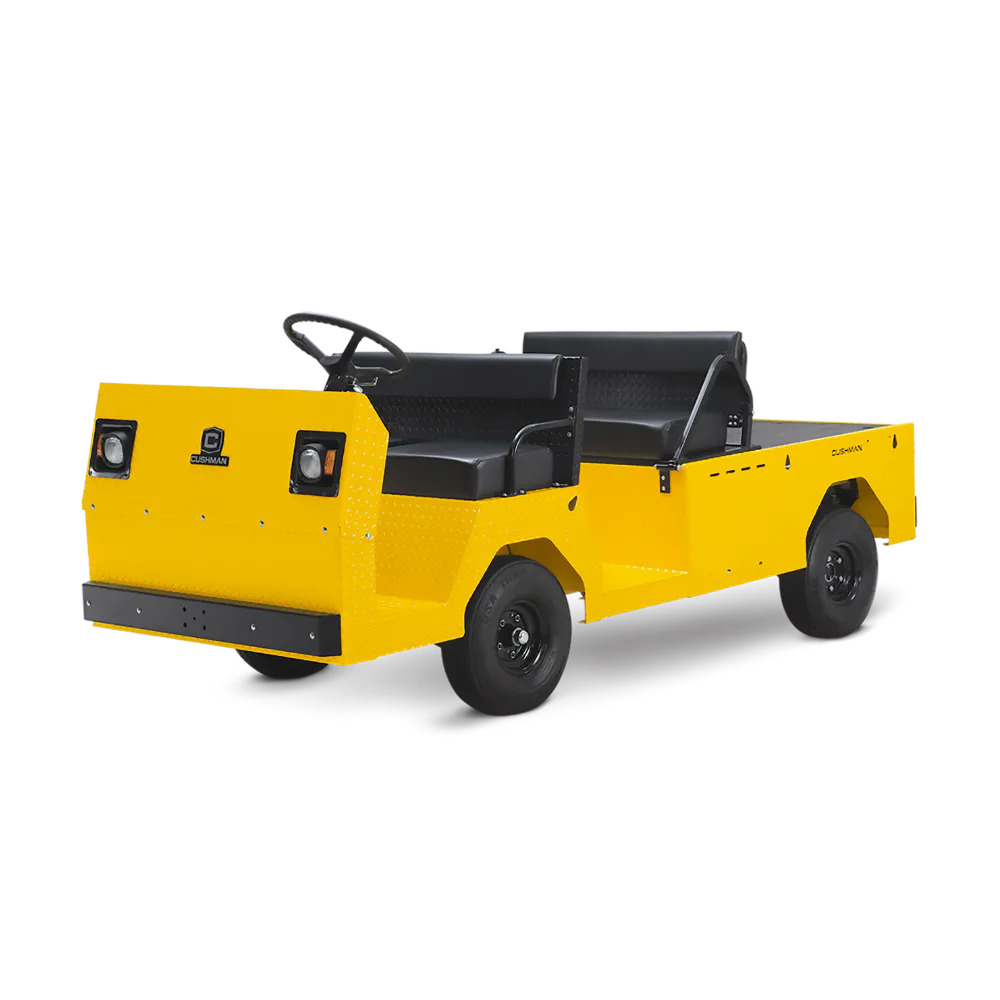

The Cushman Titan XD-4 is a Super Duty Industrial Burden Carrier designed for the toughest working environments. With the capacity to carry 4 passengers, it combines utility and comfort. It features a heavy-duty cargo deck that supports up to 1360 kg in weight and boasts an impressive towing capacity of 3630 kg. A 48V AC electric drivetrain delivers reliable performance, while advanced automatic parking brake technology ensures consistent speed on sloped terrain and automatic braking when the vehicle is stopped.
| Description | Titan XD-4 |
|---|---|
| Vehicle Load Capacity (kg) | 1360 |
| Towing Capacity (kg)) | 3630 |
| Cargo Deck Load Capacity (kg)) | 998 |
| Motor | AC Induction |
| Electrical System | 48-Volt |
| Battery (QTY/Type) | Eight, 6-Volt Deep Cycle, Swing Out |
| Battery Charger | 48V On-Board, 120/240 VAC UL |
| Horsepower (Kw) | 16.8 HP (12.5 kW) Peak |
| Speed (km/h) | 21 ± 0.8 Tow Mode: 8.1 ± 0.8 |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential w/ Helical Gears |
| Intersecting Aisle Clearance (mm) | 2130 |
| Ground Clearance (mm) | 120 |
| Cargo Deck Dimensions (mm) | 1050 x 1360 |
| Machine Dimensions (L X W X H) (mm) | 2900 x 1130 x 1190 |
| Weight (Without Batteries) (kg) | 560 |
